FRP PIPE
Fiberglass pipes are lightweight and economical pipes that can replace steel, iron, and concrete pipes.The core advantages of FRP continuously wound pipe lie in its high strength, high rigidity, excellent corrosion resistance, superior hydraulic performance, superior leak resistance, and the economic and length advantages afforded by continuous production. It seamlessly integrates materials science with advanced manufacturing processes, offering a high-performance, cost-effective, and environmentally friendly modern engineering piping solution, particularly suited for long-distance, high-flow, and corrosive transport.
Pipezy offers premium FRP continuous winding pipe, also known as continuous filament winding FRP pipe or FRP CFW pipe. Produced through advanced continuous filament winding technology, this continuous winding GRP pipe delivers exceptional performance for long-distance, high-flow, and corrosive fluid transport. As a professional FRP continuous winding pipe manufacturer, we combine high-strength fiberglass reinforcement with premium resin systems to create lightweight, durable piping solutions that outperform traditional steel, ductile iron, and concrete pipes in demanding environments.

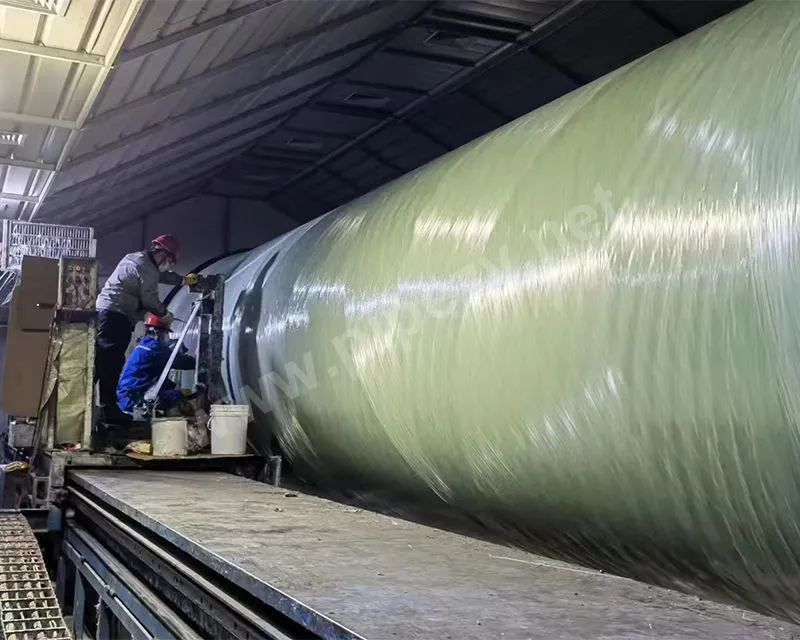

Unlike fixed-length filament winding or centrifugal casting methods, the continuous winding process uses a rotating endless mandrel (steel belt core) controlled by PLC systems. Continuous glass fiber rovings, resin, and optional silica sand are helically and circumferentially applied in multiple layers, forming seamless pipes with no longitudinal seams. This results in higher circumferential strength, smoother inner surfaces, and the ability to produce virtually unlimited pipe lengths on demand.
significantly reduces the number of joints, lowering installation time, labor costs, and potential leakage points while maintaining excellent hydraulic efficiency.
Products Description

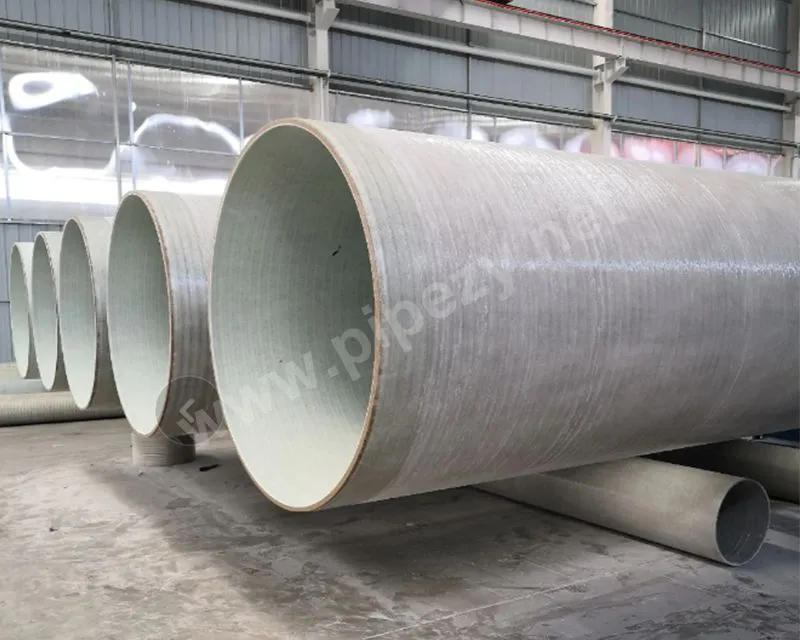

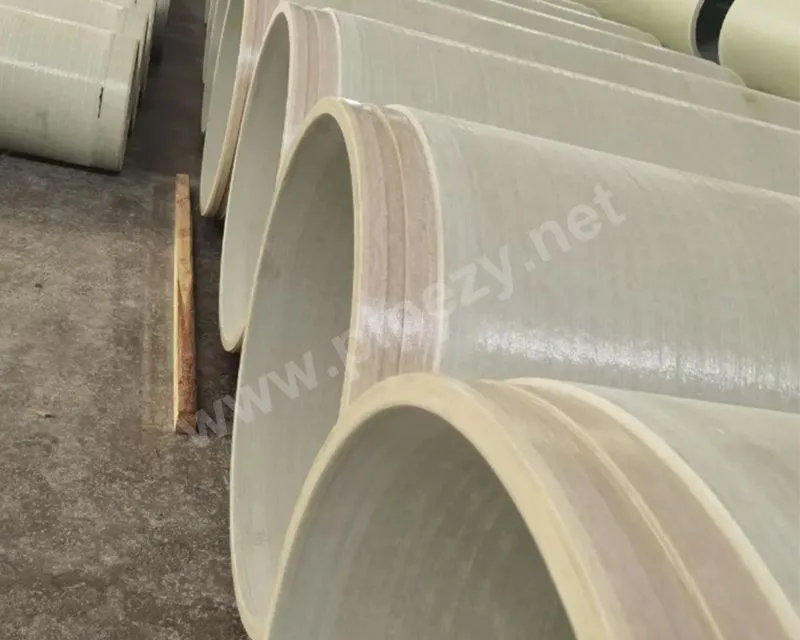

FRP Continuous Winding Pipe is a composite pipe manufactured using a continuous winding process. Compared to fixed-length wound pipe:
| Characteristic | Continuous Winding Pipe | Fixed-Length Wound Pipe |
| Production Process | Continuous, of arbitrary length | Produced individually, with a fixed length (usually ≤12m). |
| Production Efficiency | Extremely high efficiency , suitable for large-scale standardized production. | medium |
| Pipe Diameter Range | Typically medium diameter (DN200-DN2400) | The widest range (from small to very large caliber) |
| Length | Length unlimited , reduce joints | Fixed length, multiple joints |
| Inner Surface | Very smooth | smooth |
| Structural Features | No longitudinal seams, high circumferential strength | There are longitudinal and circumferential seams |
| Main Advantages | High efficiency, low cost, and unlimited length | Highly flexible and capable of producing irregularly shaped parts |
Application Areas
Our FRP continuous winding pipe for municipal water supply and corrosion resistant FRP pipe for petrochemical are widely trusted in:
Municipal water supply and drainage: main urban water supply pipelines, sewage transmission pipelines, and reclaimed water pipelines.
Petrochemical industry: oilfield water injection pipes, crude oil transportation pipes, and chemical corrosive medium transportation pipes.
Power industry: circulating water pipelines, ash and slag conveying pipes.
Marine engineering: seawater desalination pipelines, marine sewage discharge pipelines.
Ventilation systems: power plant cooling tower ventilation ducts, factory large ventilation pipes.
Summary:
continuously wound fiberglass reinforced plastic (FRP) pipes lie in their high strength, high rigidity, excellent corrosion resistance, superior hydraulic performance, outstanding leak-proof properties, and the economic and length advantages resulting from continuous production . It perfectly combines materials science with advanced manufacturing processes, offering a high-performance, cost-effective, and environmentally friendly modern engineering piping solution, particularly suitable for long-distance, high-flow-rate transportation needs in corrosive environments.
eady to benefit from high-efficiency, corrosion-resistant piping solutions? Request a quote today for FRP continuous winding pipe, continuous filament winding GRP pipe, or other FRP CFW pipe options. Our experts will help you select the perfect large diameter continuous winding pipe for your municipal, industrial, or marine project.
